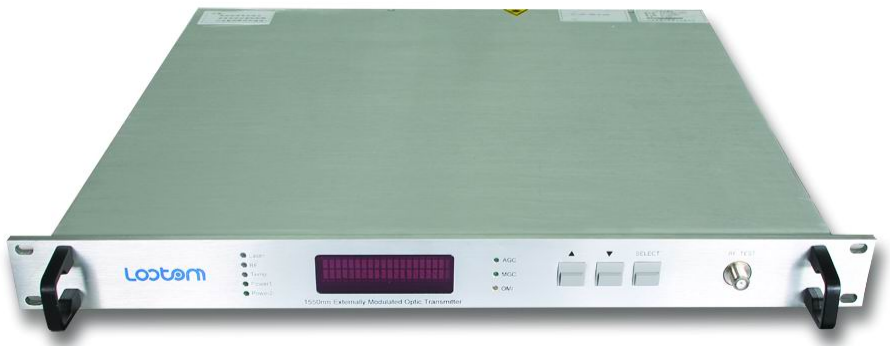

            TFT 1550D Externally Modulated Optical Transmitter






























                                    Features



                                ●



                                    single output or dual output optional. The output optical power ranges from 3dBm to
                                    10dBm.





                                ●



                                    superior pre-distortion circuit still has the perfect CTB and CSO performance values
                                    when the high standard CNR value is reached.





                                ●



                                    superior SBS suppression circuit, SBS continuous adjustable, can be suitable for
                                    different transmission distance network requirements.





                                ●



                                    AGC control.





                                ●



                                    Single or dual power supply optional.





                                ●



                                    The intelligent fan, when the chassis temperature reaches 32 degrees C, it starts to
                                    run.





                                ●

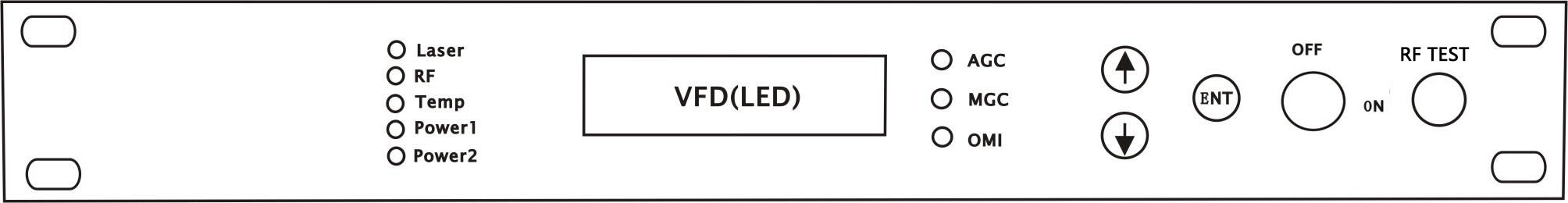

                                    LED display has many functions, such as laser monitoring, digital display, fault
                                    alarm, network management and so on. Once the laser's working parameters deviate
                                    from the allowable range of software setting, it will alert.





                                ●



                                    standard RJ45 interface, supports SNMP, remote network management, to adjust AGC,
                                    SBS, OMI, and so on.





                                ●



                                    Through the RS-232 standard interface, users can change the type and specification
                                    of the panel display, and can also be used for local network management and
                                    monitoring.




                                    Technical Specifications










                                                Parameter






                                                Index






                                                Remarks










                                                Optical Parameters






                                                Wavelength(nm)






                                                1550±10











                                                Output power(dbm)






                                                2×7






                                                Can be customized










                                                Optical return loss (dB)






                                                ≥50












                                                Connector type






                                                FC／APC






                                                Or SC／APC










                                                RF parameters






                                                Bandwidth(MHz)






                                                47～862/1000












                                                Input level(dBμV)






                                                80±5






                                                AGC










                                                Flatness(dB)






                                                ≤±0.75






                                                47~1000MHz










                                                Return loss(dB)






                                                ≥16












                                                Input inpedance(Ω)






                                                75












                                                Link Parameters






                                                CNR(dB)






                                                ≥53












                                                CTB(dB)






                                                ≥65












                                                CSO(dB)






                                                ≥65












                                                SBS(dBm)






                                                13～19 continuous
                                                    adjustable






                                                0.1dBm step










                                                General Parameters






                                                Interface






                                                RJ45, R232












                                                Power(V)






                                                90～265






                                                Or -48VDC










                                                Power loss (W)






                                                ≤50












                                                Working Temp (℃)






                                                -20～85






                                                Automatically shell temp
                                                    control










                                                Working relative
                                                    humidity






                                                20%～85%
