            GDONU300-4011 XPON HGU 1GE+3FE+CATV+WIFI(2.4G)

            GDONU300-4011 is launched to be oriented to multi-service integration network as an optical network unit device, which belongs ...

            Current position:HOME > PON

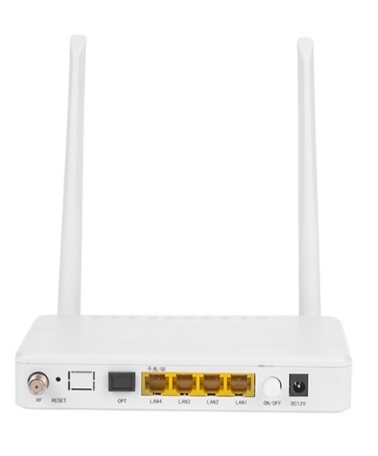

            GDONU300-4011 XPON HGU 1GE+3FE+CATV+WIFI(2.4G)

            Overview        GDONU300-4011 is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario.
                   It configures one 10/100/1000Mbps port,three 10/100Mbps ports, WiFi (2.4G) port and RF interface that providing with high-speed data services and high-quality video services to users. Features         Compliance with IEEE 802.3ah(EPON) & ITU-T G.984.x(GPON) standard
                    Compliance with IEEE802.11b/g/n 2.4G WIFI standard
                    Support IPV4 & IPV6 Management and transmission
                    Support TR-069 remote configuration and maintenance
                    Support Layer 3 gateway with hardware NAT
                    Support Multiple WAN with Route/Bridge mode
                    Support Layer 2 802.1Q VLAN, 802.1P QoS,ACL etc
                    Support IGMP V2 and MLD proxy/ snooping
                    Support DDSN, ALG, DMZ, Firewall and UPNP service
                    Support CATV interface for video service
                    Support bi-directional FEC Highlights         Support docking compatibility with OLT of various manufacturers
                    Support automatically adapt to the EPON or GPON mode used by the peer OLT
                    Support 2.4G WIFI
                    Support multiple WIFI SSID
                    Support EasyMesh WIFI function
                    Support WIFI WPS function
                    Support multiple wan configuration
                    Support WAN PPPoE/DHCP/Static IP/Bridge mode.
                    Support CATV video service
                    Support fast transmission of hardware NAT Hardware Specifications         interface: 1* G/EPON+1*GE+3*FE+2.4G WLAN+1*RF
                    Power adapter input: 100V-240V AC, 50Hz-60Hz
                    Power Supply: DC 12V/1A
                    Indicator light: POWER/PON/LOS/WIFI/ LAN1 LAN2/LAN3/LAN4/RF/OPT
                    Button: Power switch Button, Reset Button
                    Power Consumption: 小于18W
                    Working temperature: -20℃~+55℃
                    Environment humidity: 5% ~ 95% (non-condensing)
                    Dimension:168mm x 127mm x 28mm (L×W×H Without antenna)
                    Net Weight:0.24Kg PON Interface         Interface Type: SC/APC, CLASS B+
                    Transmission distance: 0~20km
                    Working wavelength: Up 1310nm;Down 1490nm;CATV 1550nm
                    RX Optical power sensitivity: -27dBm
                    Transmission rate: GPON: Up 1.244Gbps;Down 2.488Gbps;EPON: Up 1.244Gbps;Down 1.244Gbps Ethernet Interface         Interface type:4* RJ45
                    Interface parameters: 10/100/1000BASE-T and 10/100 BASE-T Wireless         Interface type:External 2*2T2R External antenna
                    Antenna gain: 5dBi
                    Interface maximum rate: 2.4G WLAN: 300Mbps
                    Interface working mode: 2.4G WLAN:802.11 b/g/n CATV Interface         Interface type: 1*RF
                    Optical receiving wavelength: 1550nm
                    RF output level : 80±1.5dBuV
                    Input optical power: 0~-15dBm
                    AGC range: 0~-12dBm
                    Optical reflection loss: >14
                    MER: >31@-15dBm POTS Interface         Interface type: 1*FXS , RJ11?connector
                    Support?G.711 codec Packing list         ONU * 1 PCS
                    Power adaptor *1 PCS
                    Network cable *1 PCS

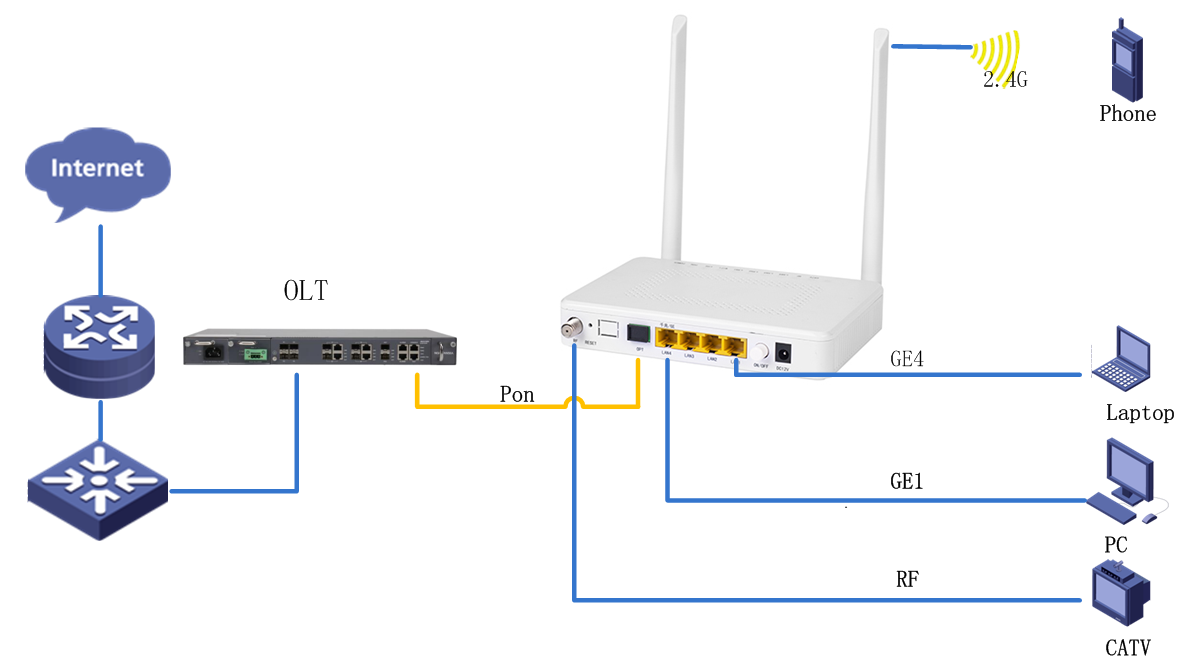

                    Box *1 PCS Application Scenario
