PRODUCT

PON

EPON ONU GPON ONU XPON ONU EPON OLT GPON OLT WIRELESS ROUTER

GPON ONU 4FE PORTS GDONU300-4FE

GDONU300-4FE is a XPON ONU device designed based on mixing and multi-service network is also XPON SFU/HGU terminal applied ...

Current position：HOME > PON

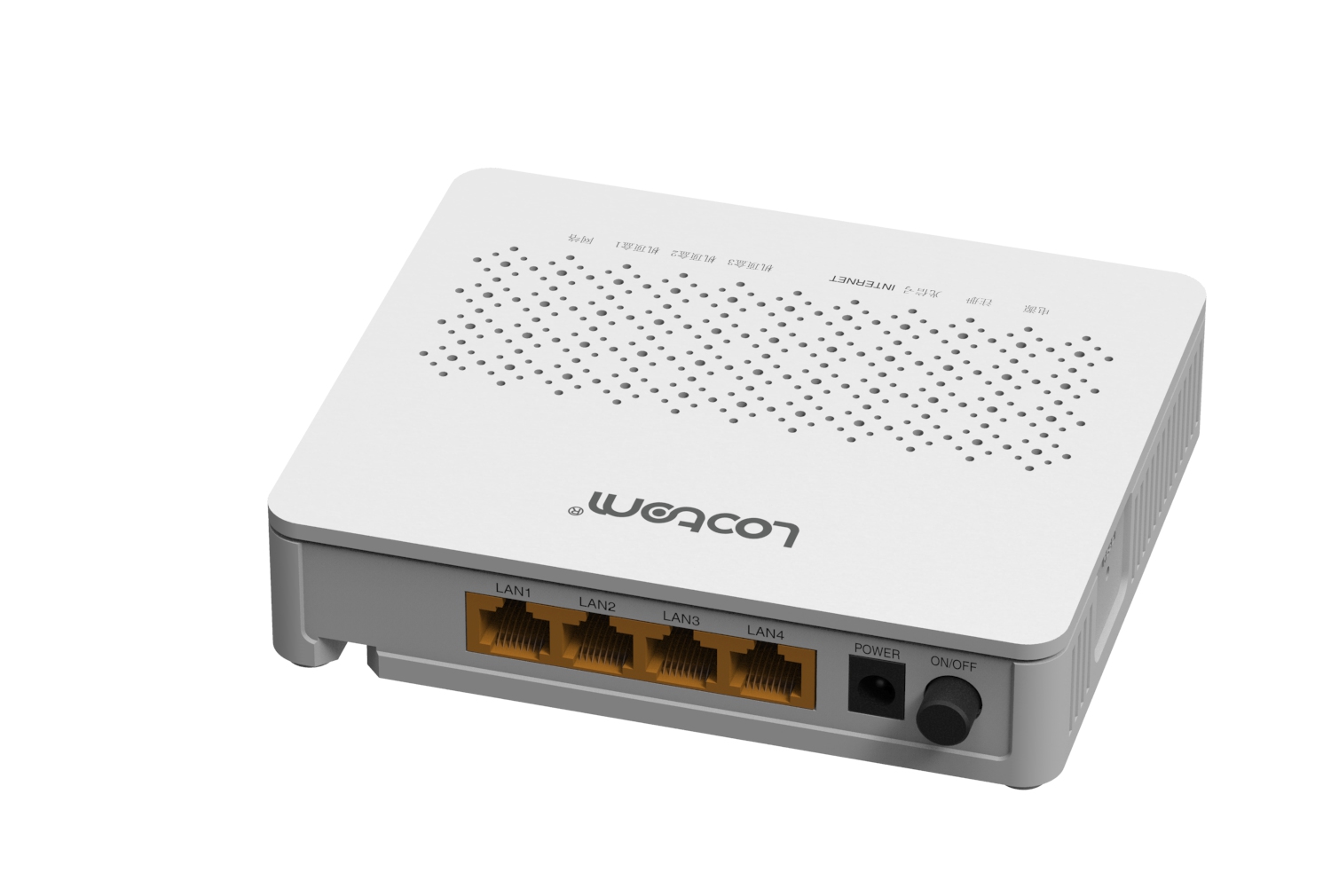

GPON ONU 4FE PORTS GDONU300-4FE

Overview    GDONU300-1GE GPON ONU is designed for muti-business and for FTTH/O solution with bridge and router mode. It provides one 100/1000Mbps adaptive port, high-speed data and quality video services. It follows the 802.3ah IEEE international standards, with good interoperability and interoperability and can work with OLT of all the mainstream manufacturers. Features         ● It supports 1.25 Gbps up and 2.5 Gbps down asymmetric PON transmission rate and it can realize the high split ratio of 1:128 and up the coverage radius to 20 km.
        ● It follows the ITU-T G.984 and IEEE802.3ah. GPON and EPON standard, and it supports remote management, configuration and maintenance through work with OLT of other manufacturers
        ● Support Telnet remote maintenance and configuration
        ● Support software online upgrade. Technical Specifications

Item	GDONU300-4FE
User Networks ports	110//100/1000M+310/100M BASE-T self-adaptive RJ45 interface
PON ports	GPON: Uplink transmission rate:1.25GBPS Downlink l transmission rate:2.5GBPS EPON: Uplink transmission rate:1.25GBPS Downlink l transmission rate:1.25GBPS Network coverage radius : 20 km Optical interface type：SC/PC or SC/APC Optical receiver with high sensitivity : ≥-28dBm Luminous power：1~4dBm
Dimension	173 mm(W) x 117 mm(D) x 33 mm(H) Box dimension: 23 mm(W) x 25 mm(D) x 80 mm(H) Weight: 0.5kg
Dimension	Installation ：plug and play
Surroundings parameter	operating temperature：0℃～50℃
Surroundings parameter	storage temperature：-40℃～80℃
Power supply	DC12V/1A adapter type power supplying
Power consumption	<5W
Body case	Plastic case

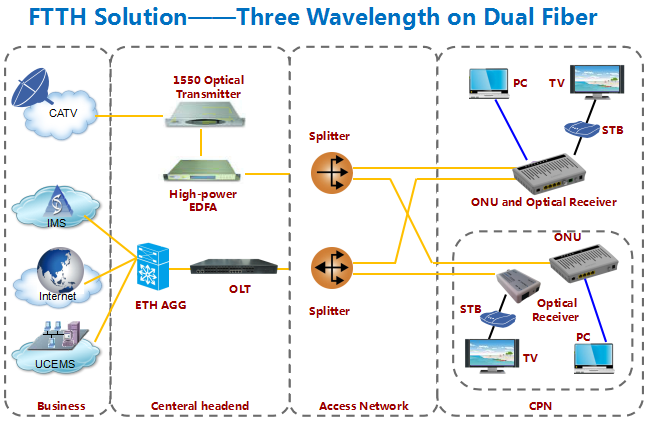

Network diagram
